AZ1117CD-3.3TRG1
Manufacturer:
Diodes Incorporated
Mfr.Part #:
AZ1117CD-3.3TRG1
Datasheet:
Description:

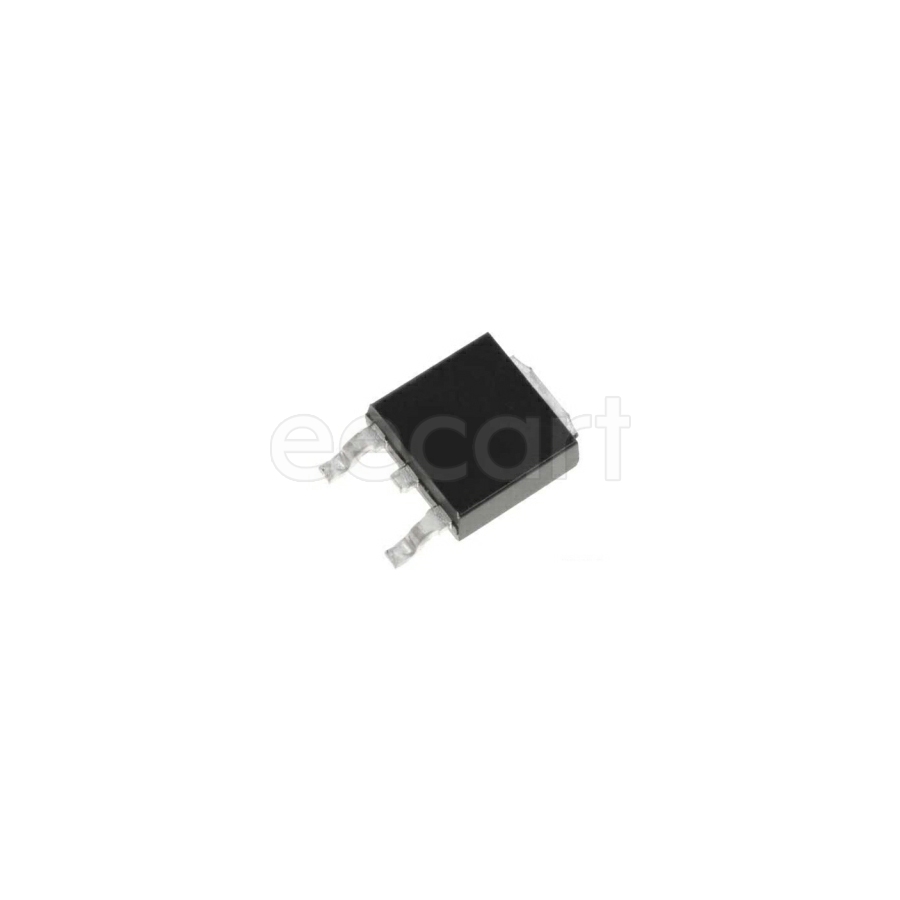

Voltage Regulators - Linear TO252 SMD/SMT Positive Fixed 3.3 V 800 mA
| Parameter | Value |
|---|---|
| Length | 6.7 mm |
| Width | 6.2 mm |
| Max Operating Temperature | 125 °C |
| Min Operating Temperature | -20 °C |
| Number of Pins | 3 |
| Height | 2.39 mm |
| Dropout Voltage | 1.3 V |
| Output Current | 800 mA |
| Output Voltage | 3.3 V |
| Output Type | Fixed |
| Accuracy | 1 % |
| Max Output Current | 1.35 A |
| Number of Channels | 1 |
| Quiescent Current | 4 mA |
| Max Input Voltage | 15 V |
| Number of Outputs | 1 |
| Min Current Limit | 1 A |
| Reference Voltage | 1.262 V |
| Number of Regulators | 1 |
| Schedule B | 8542390000 |
| Load Regulation | 2 mV |
| Line Regulation | 0.5 mV |
| Min Input Voltage | 3.2 V |
| RoHS | Compliant |
| Polarity | Positive |
| Packaging | Reel |
Stock: 701
Distributors
pcbx
pcbxUnit Price$0.16224
Ext.Price$0.16224
| Qty | Unit Price | Ext.Price |
|---|---|---|
| 1 | $0.16224 | $0.16224 |
| 10 | $0.14317 | $1.43170 |
| 50 | $0.12634 | $6.31700 |
| 100 | $0.10819 | $10.81900 |
| 500 | $0.09264 | $46.32000 |
| 1000 | $0.08718 | $87.18000 |
| 3000 | $0.08205 | $246.15000 |
| 5000 | $0.07722 | $386.10000 |
